Hangup

The Hangup command is used to disconnect a call. You can see how to use this command in a HTTP request and what HTTP response you will get from the phone system (Figure 1).

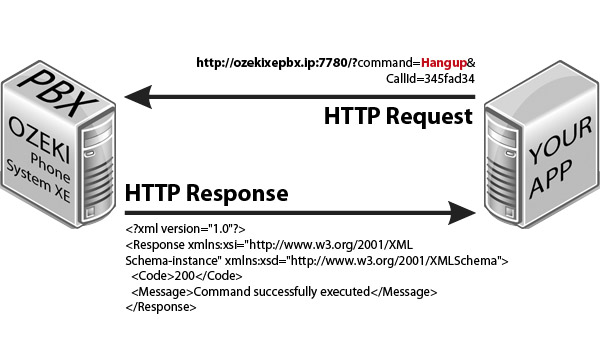

hangup application example
Figure 1 - Hangup Application/XML example

Request parameters

Parameter name Value Description Mandatory
command string value, Hangup Specifies the type of the HTTP API command. Yes
CallId string value,
e.g. 23Xdz7
The call ID of the call you want to hangup. Yes
These parameters are only required if office user authentication is set in the HTTP API:
Parameter name Value Description
Username string value,
e.g. user1000
This is the username of an Ozeki Phone System office user.
Password string value,
e.g. mypassword12
This is the password belonging to the username.

Response parameters

Parameter name Value Description
Code int value
(200, 300, 301, 302, 303, 601)
Returns the status code of the response. For more infromation go to the status code reference page
Message string value,
e.g. Command successfully executed
Returns the description of the response code. For more infromation go to the status code reference page

How to use it?

Step 1: Make a call between two extensions. Use ListActiveCalls command to find the call ID of the call you want to hang up. You can find the CallId in the response, between one of the <CallId></CallId> nodes.

Step 2: Initiate a hangu p using a HTTP request as seen in the picture above. Paste the call ID you found in Step 1 in the CallId parameter of the request.
