Setup Amazon SimpleDB
for authenticating extensions

In this chapter you can learn how to authenticate SIP extensions using an Amazon SimpleDB database server with your Ozeki Phone System XE. You can see the installation steps, the database connection string, the database connection type and the recommended database table layout for Amazon SimpleDB database.

After you have followed this guide, you will be able to authenticate SIP extensions with Amazon SimpleDB database server.

During the configuration you should choose the following database connection type:

Odbc

You should use the next database connection string:

Access Key=your_access_key;Secret Access Key=your_secret_access_key

The database connection string has to be modified to match your database.

The connection string and the connection type should be entered on the Database Authenticator SQL API configuration form.

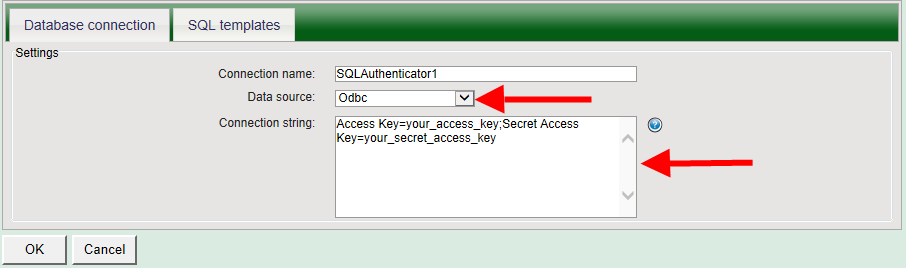

Figure 5 - Specifying the connection string for the Amazon SimpleDB database

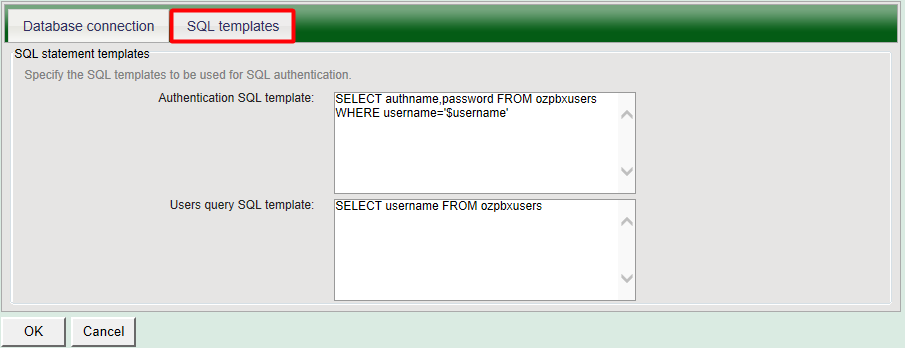

The following figure shows the SQL queries that allow you to verify if a SIP account is available or not in your database.


Figure 6 - SQL queries for authenticating

After the Database Authenticator SQL API has been configured in the Ozeki Phone System XE, you need to create the database tables for Database Authenticator SQL API. Use the following table layout:

  • ozpbxusers table
Name Type
authname varchar(45) (primary key, auto increment)
username varchar(45)
password varchar(45)

If you have any questions or need assistance, please contact us at info@ozekiphone.com.
