Hold

The Hold command is used to put both legs of the call into Hold state. You can only change back the callstates to InCall state with Unhold command. (Find out what kind of CallStates a call can have.) You can see how to use this command in a HTTP request and what HTTP response you will get from the phone system (Figure 1).

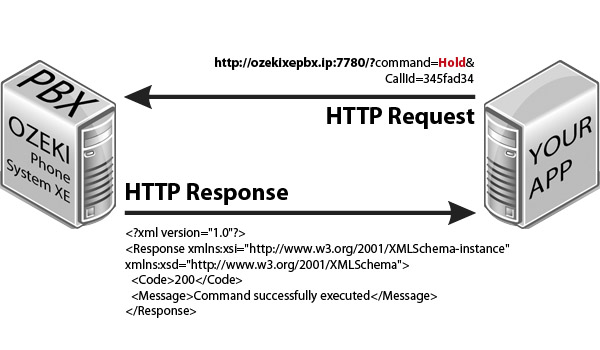

hold application xml example
Figure 1 - Hold Application XML example

Request parameters

Parameter name Value Description Mandatory
command string value, Hold Specifies the type of the HTTP API command. Yes
CallId string value,
e.g. XzeOK		 The call ID of the call you want to hold. Yes
These parameters are only required if office user authentication is set in the HTTP API:
Parameter name Value Description
Username string value,
e.g. user1000		 This is the username of an Ozeki Phone System office user.
Password string value,
e.g. mypassword12		 This is the password belonging to the username.

Response parameters

Parameter name Value Description
Code int value
(200, 300, 301, 302, 303, 601)		 Returns the status code of the response. For more infromation go to the status code reference page
Message string value,
e.g. Command successfully executed		 Returns the description of the response code. For more infromation go to the status code reference page

How to use it?

Step 1: There must be a call between two extensions. Use ListActiveCalls command to find the call ID of the call you want to hold. You can find the CallId in the response, between one of the <CallId></CallId> nodes.

Step 2: Initiate a hold using a HTTP request as seen in the picture above. Paste the call ID you found in Step 1 in the CallId parameter of the request.
