How to connect a Desktop VoIP Phone to the Ozeki Phone System

Due to its great flexibility, the Ozeki Phone System enables to connect desktop and mobile phones as well to your PBX. This guide focuses on VoIP desktop phones and describes what you need and how you should configure your desktop IP phone in order to integrate it into your telecommunication network. To achieve this objective, you need a desktop IP phone (such as Linksys SPA942 in our example) and an Ozeki Phone System installed on your Windows PC.

Do you need a Mobile Extension? Click here


What you should do to create a connection

desktop-phone-connection

Step 1: Create a SIP account in Ozeki XE

Step 2: Configure your Desktop Phone

Step 3: Setup dial plans

Step 4: Make a test call

Step 1: Create a SIP account in Ozeki XE

In order to connect your desktop VoIP phone to Ozeki Phone System, first you need to create a SIP Extension. You can find detailed guide about how to create a SIP Extension here.

Step 2: Configure your Desktop VoIP Phone

After you have connected your phone to the VoIP network with the proper cables, the system will assign an individual IP address to the phone by using DHCP. If you use a Linksys SPA942 desktop VoIP phone, you may find it in the menu system of the telephone (Network Settings - > Status).

linksys desktop voip phone

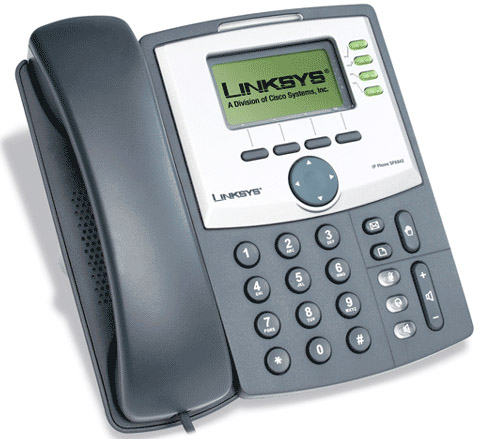

Figure 2 - Linksys SPA942 desktop VoIP phone

For configuring your desktop phone, you need to open the configuration page of the phone by typing its IP address into your web browser. Log in as admin. (In case of Linksys SPA942, you need to click on
'Ext 1' for configuring the extension onto the Line 1.) On the configuration panel you need to specify the following information (Figure 3):

  • Line Enable: Yes
  • SIP Port: leave it on default
  • Proxy: the IP address of your Ozeki Phone System
  • Display Name: e.g. John Sample
  • Password: optional
  • Auth ID: can be same or different from SIP User ID
  • User ID: the user part of an SIP address

configuring a desktop phone
Figure 3 - Configuring a Desktop Phone (Linksys SPA942)

After specifying the SIP details, click on the 'Submit All Changes' button at the bottom of the page. The phone will be booted.

Now return to the Ozeki Phone System and click on the Log button. The 'Registration accepted' message will appear, if your configuration was successful (Figure 3).

Step 3: Setup dial plans

By default, every SIP extension can call other SIP extensions, but there are cases when you need to call telephones in PSTN or GSM networks. In these cases, you need to setup Outbound routing rules. It is also possible that there are incoming calls from the PSTN or GSM networks. In these cases, you need to add Inbound routing rules to forward them to VoIP phones. For sending and receiving SMS messages, you need to add new Message routing rule. If a call is not answered by the destination and you wish to forward the call to a voicemail, you need to add a new Missed call rule.

Step 4: Make a test call

In order to make a call, dial the phone number of your new extension by using an other extension of your VoIP network. (In our example the No. 1200 extension dialled the new No. 1100 Desktop VoIP Phone extension.) Figure 3 shows that the whole call process can be tracked in the Log panel of your extension. 'Setup and Ringing' message indicates that an incoming call is in progress. 'InCall' message shows that the incoming call has been answered. After finishing the call, the 'End Call' message will appear.

test call log
Figure 4 - Test call log

Conclusion

The guide above presented that Desktop VoIP Phones can be easily connected to the Ozeki Phone System. If you follow that step-by-step, you will be able to install a new SIP extension in the PBX and configure your phone on its web GUI quickly. That's it. After that, your phone will be ready to use.

If you have any questions or need assistance, please contact us at  info@ozekiphone.com
